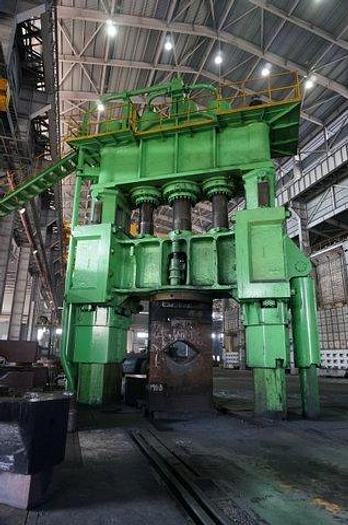

Skoda 8,000 Ton 2 Column Pull Down Open Die Forging Press
Skoda 8,000 Ton 2 Column Pull Down Open Die Forging Press
or
Call 770-509-0744
Description
Glama 80 Ton Manipulator 2 Columns Oilgear Hydraulics Fast Acting – Pull Down
Specifications
| Manufacturer | Skoda |
| Year | 2010 |
| Condition | Used |
| Stock Number | 10160 |
| Press power | 8,000 Ton |
| Type | Pull-Down |
| Column quantity | 2 (Tie Rod - 4 Pos) |
| Operation method | Oil Hydraulic |
| Daylight | 6,100 mm |
| Main cylinder quantity | 3 |
| Stroke | 2,500 mm |
| Center cylinder (x 1) | 1,250 mm |
| Outer cylinder (x 2) | 630 mm |
| Forging press capacity | 6,300 Ton |
| Upsetting press capacity | 8,000 Ton |
| Return cylinders (x 2) | 500 mm |
| 3 cylinder | 0 - 62 mm/sec |
| 2 cylinder | 0 - 184 mm/sec |
| 1 cylinder | 0 - 93 mm/sec |
| Approach | 0 - 250 mm/sec |
| Return | 0 - 250 mm/sec |
| Upsetting (at 8,000 ton) | 0 - 48 mm/sec |
| Press height (floor - max) | 10,370 mm |
| Press height (under floor) | -14,200 mm |
| Slide table size | 3,150 x 8,400 mm |
| Slide table shifting stroke | 8,000 mm |
