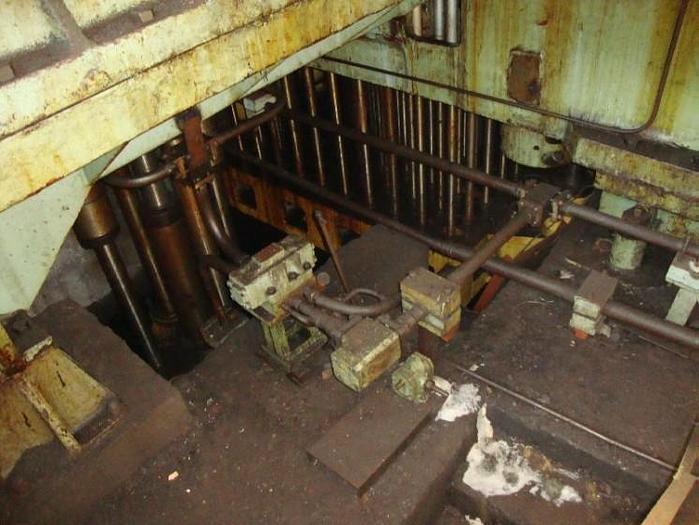

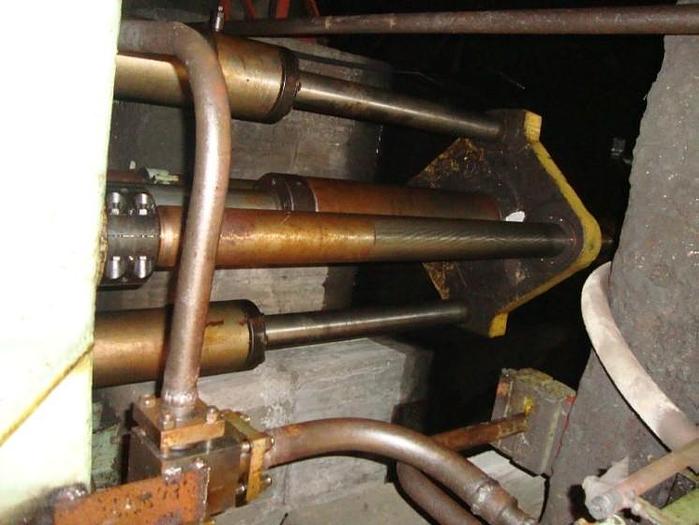

2,000 Ton Hydraulic Head Press

2,000 Ton Hydraulic Head Press

Specifications

Year1985
ConditionUsed
Stock Number10129
1st stage2,500 kN
2nd stage5,000 kN
3rd stage8,000 kN
Rated force of hydraulic cushion2,500 kN
Travel of the cross-piece (drawing & clamping)1,700 mm
Maximum distance between table & drawing cross-piece2,600 mm
Table dimensions2,650 x 2,650 mm
Idle run200 mm/s
Backstroke200 mm/s
Working stroke for double action32 mm/s
Working stroke for single action10 mm/s
Rated pressure20 MPa
Total installed power of all electric motors299.5 kW
Dimensions of the press (l x w x h-above the floor)15.22 x 8.62 x 7.73
