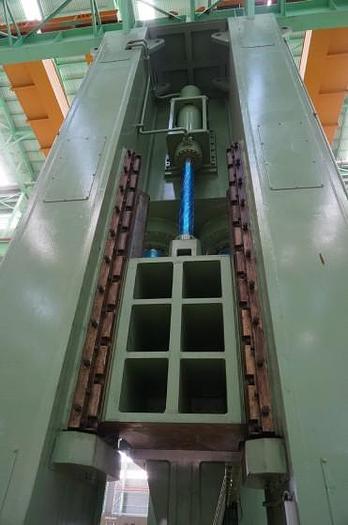

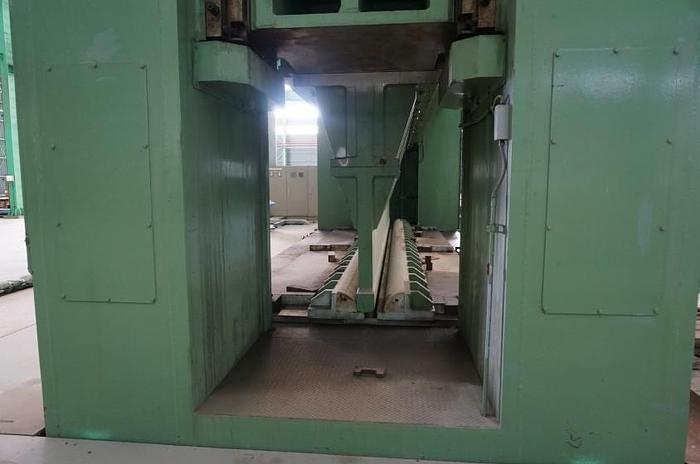

Seokwang 12,000 Ton Bending Press

Seokwang 12,000 Ton Bending Press

Specifications

ManufacturerSeokwang
Model12000
Year2010
ConditionUsed
Stock Number10102
Main capacity12,000 Ton
Lifting capacity120 Ton
Ram stroke1,800 mm
Length of daylight1,800 mm
Working pressure - maximum280 kg/cm²
Descending speed120 - 150 mm/second
Pressing speed3 - 5 mm/second
Ascending speed120 - 150 mm/second
Slide size7,600 x 3,000 mm
Table size7,820 x 3,530 mm
Main motor x 2220 kW
Oil tank capacity27,000 liter
Noise degree85+5 Db(A) at no loud
Operation methodManual & 1-Cycle Auto
