6,500 Ton Hydraulic Forging Press with 80 Ton Manipulator
6,500 Ton Hydraulic Forging Press with 80 Ton Manipulator
or
Call 770-509-0744
Description

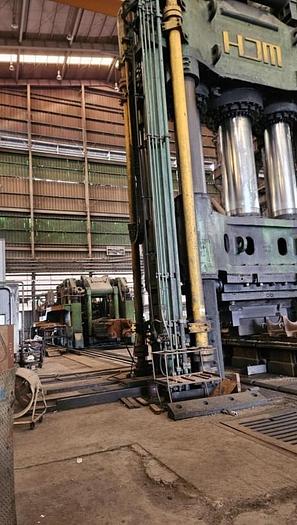

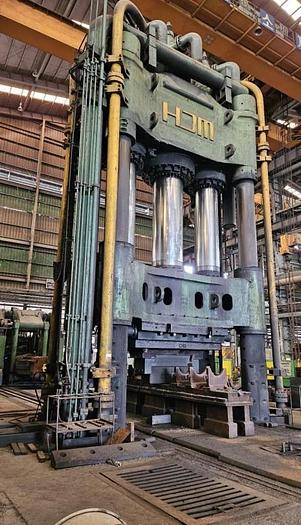

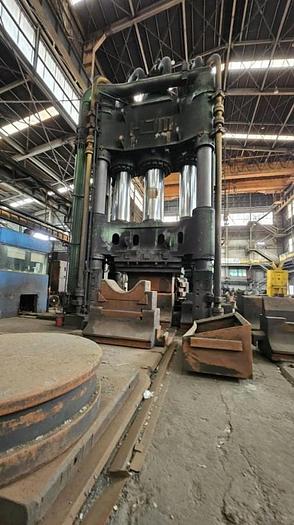

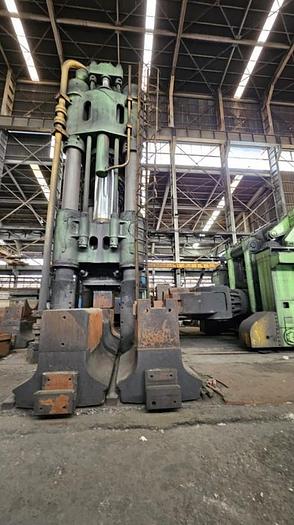

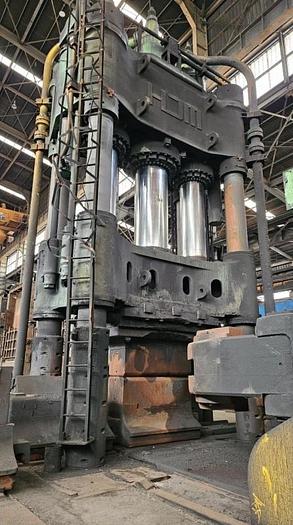

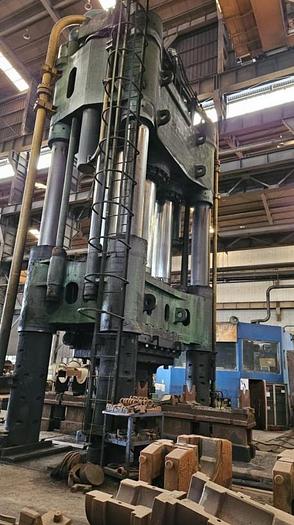

6500 Ton Open Die Free Forging Press with 80 Ton Manipulator
Four Column Push Down Oil Hydraulic System
Specifications
| Condition | Used |
| Stock Number | 11073 |
| Nominal force (static working pressure of 320 bar) | 5,000 Ton |
| Up-setting force (static working pressure of 420 bar) | 6,500 Ton |
| Daylight | 4,700 mm |
| Stroke of movable cross head | 2,700 mm |
| Main ram diameter (center cylinder) | 1 set - 950 mm |
| Side ram diameter (side cylinder) | 2 sets - 750 mm |
| Return cylinder ram diameter | 2 sets - 300 mm |
| Moving table | 2,600 x 6,600 mm |
