Parker-Hannifin 120 Ton Twin Column Hydraulic Straightening Press
Parker-Hannifin 120 Ton Twin Column Hydraulic Straightening Press
orCall 770-509-0744
Description

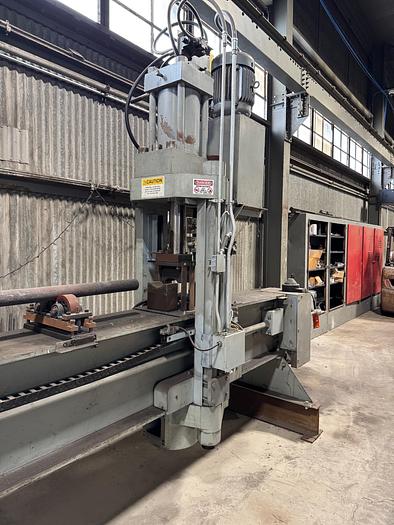

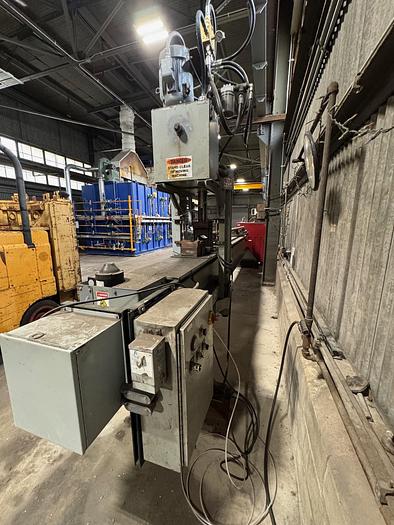

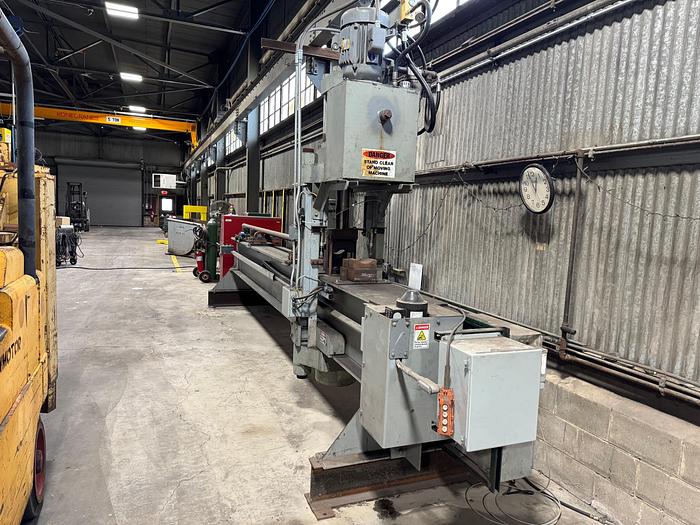

120 Ton HPM / Parker - Hannifin Twin Column Hydraulic Straightening Press
Movable fixturing that can move with the head or disengage from the head has been added
2-Axis Traveling Gantry Type
All Steel Weldment Construction
Complete Hydraulic System with Reservoir
Complete Electrical Controls with Operator Station
Variable Speed Motorized Gantry Travel
Complete 7.5 HP Hydraulic System (Gantry Mounted)
Ram Nose Adapter
Specifications
| Manufacturer | Parker-Hannifin |
| Model | 120 T |
| Condition | Used |
| Stock Number | 11128 |
| Pressing capacity | 120 Ton @ 3380 PSI |
| Pressing Zone | 96" Between Supports @ 100% Capacity |
| Ram stroke | 11" |
| Ram diameter | 4.5" |
| Distance between columns | 18" |
| Column diameters (2) | 3.5" |
| Bed Size | 15" F-b, 240" L-R |
| Pressing cylinder diameter | 9.5" |
| X axis gantry travel | 210" L-R |
| X axis gantry travel speeds | 0 - 430 ipm |
| Daylight opening (ram nose to bed) | 18" |
| Bed Height | 32" |
| Ram nose mounting | Removable Clamp Type |
| Machine dimensions | 3.5' x 20' x 8' |
| Machine weight | 9,000 lb |
| Gantry travel | Motorized cable drive |
| Z axis ram speeds | Advance - 65 ipm, Pressing - 0-9 ipm, Return - 85 ipm |
| Electrics | 240 / 480 VAC / 3 Ph / 60 Cy |
